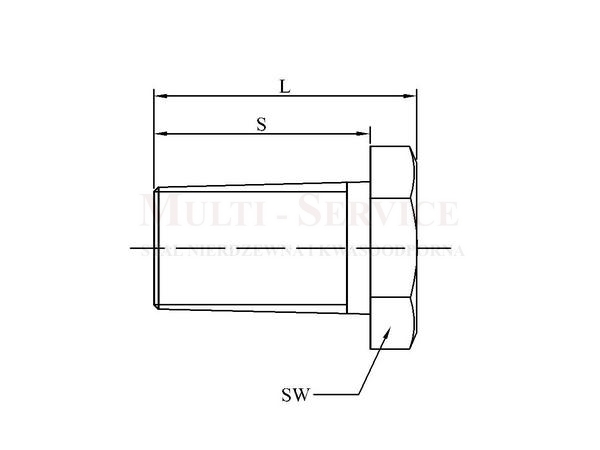

Hexagonal plug with conical thread no 23
Specifications
| Dimension | L | s | SW |
|---|---|---|---|
| 1/8″ | 13 | 8 | 12 |
| 1/4″ | 15 | 10 | 14 |
| 3/8″ | 17 | 11 | 19 |
| 1/2″ | 20 | 14 | 22 |
| 3/4″ | 24 | 16 | 30 |
| 1″ | 27 | 18 | 36 |
| 1 1/4″ | 31 | 21 | 46 |
| 1 1/2″ | 33 | 21 | 50 |
| 2″ | 38 | 26 | 65 |
| 2 1/2″ | 39 | 27 | 79 |
| 3″ | 51 | 36 | 95 |
